  • Product Name:HGP-600P1
  • Model Number:HGP-600P1
Product descriptions:

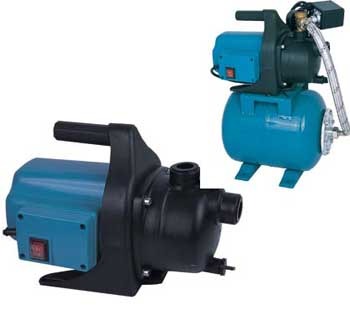

Garden JET Pump ( & Automatic working)
Model: HGP-600P1/ 800P1/ 1000P1/ 1200P1
Power: 0.6 - 1.2 KW
Flow: 50 - 63L/min
Head: 35 - 50 m
Dia. Of Pipe: 1"
Cable: H07RN-F 3G1.0(mm2)*1.2m

AUTOMATIC TYPE: AUHGP-600P1......

Operating limits:
1. Fluid temperature up to 35C
2. Maximum ambient temperature 40C
3. Max. Working pressure: 6bar
4. Suction lift up to 8m

Application:
1, Suitable for water lifting and distribution in domestic fittings and little irrigations.
2, Selfpriming jet water pumps with a very high hydraulic performance and a considerable pressure capacity.

220v/50Hz, 230v/50Hz, 110v/60Hz & 115v/60Hz models are available on request.


MODELPOWERVOLTAGEMAX.FLOWMAX.HEADMAX.SUCTIONIN - OUTLETGWDIMENSION
HGP-600P1600W220V/50Hz3000L/h35m8m1"6.838x21x26cm
HGP-800P1800W220V/50Hz3200L/h40m8m1"7.338x21x26cm
HGP-1000P11000W220V/50Hz3500L/h45m8m1"7.638x21x26cm
HGP-1200P11200W220V/50Hz3800L/h50m8m1"8.138x21x26cm
